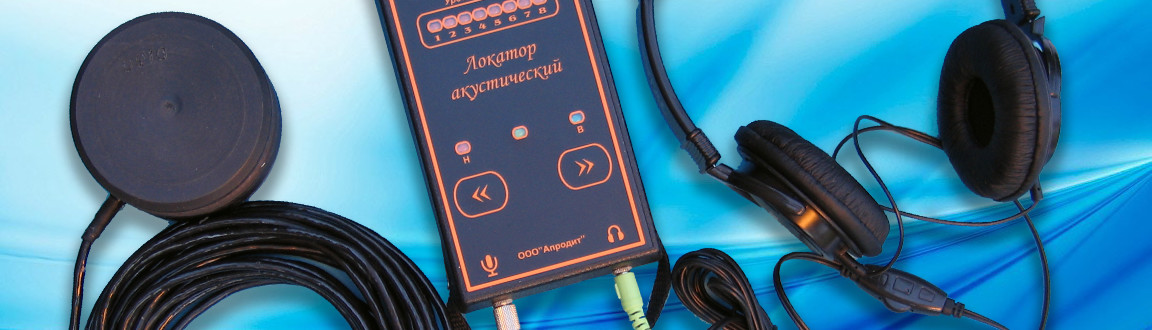

Acoustic Locator LKA

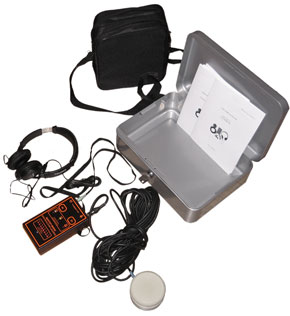

Acoustic pig detector LKA-00 with bag and box. / LKA-00 amplificador de sonido de diabolos de limpieza

Work of acoustic locator LKA-00 is based on amplification of the noises created by the pigs moving through a pipeline.

These noises occur every time when a pig traverses a circumferential weld and cups or cleaning elements scrap against the pipe wall. For example by the number of sounds in one batch an operator can say how many polyurethane cuffs has the approaching PIG.

Due to it's high sensitivity the acoustic locator allows to "to hear" a PIG motion on a distance of up to1,5...2 km along any pipeline.

The geophone can be placed in the ground directly over the pipe. Geophone is connected with control unit by a cable with length 10m (longer cable by request). It allows to "listen" a PIG while sitting in a car.

CONVENIENCE AND EASINESS IN USE

For convenient attachment of geophone to exposed parts of a pipeline like vent pipes, valves, fittings etc. it is equipped by a small magnetic clip.

A wide range of allowable operating temperatures, water resistant remote geophone (acoustic sensor) and a water tight control unit, allows to use this acoustic locator in all climatic conditions.

All regulation and switching of device operation modes are performed by means of two buttons on the control unit. Listening is conducted on high-quality headphones.

For visualization of received signal strength and for amplification level adjustments there is an indicator with 8 LEDs on the from panel. The brightness of LEDs is automatically regulated by photocell.

While listening there is a possibility for quick adjustment of amplification level as well as selection among three frequency ranges which pass-bands are optimized for distant, middle and close PIG detection.

Electric batteries of common type LR 6 are used as a source of power supply in LKA-00. The device has low power consumption and maximizes the use of batteries to their full discharge.

The control and adjustments of acoustic locator are made intuitive and easy. Short clear instructions is supplied. The instructions are written in English and Russian.

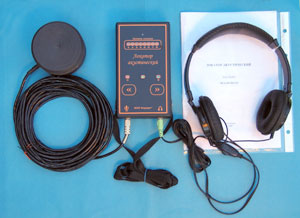

DEVICE COMPOSITION

  • Remote acoustic sensor (geophone) with 7m length cable (other cable length is possible)

  • Control unit

  • High quality headphones

  • Instruction in English and Russian

  • The device comes in a handy bag

  • A metal box for transportation and storage can be ordered additionally

Acoustic amplifier system LKA-00 allows to hear extremely faint sounds of in-line PIG motion using a geophone at distance 1500 metres and more / Amplificador acustica de sonido de diabolos de limpieza

TECHNICAL CHARACTERISTICS

Number of frequency bands

3

Bands of amplified frequencies:

Medium frequenciesrange
30 - 6000 Hz
Low frequenciesrange 30 - 1000 Hz
High frequenciesrange 500 - 6000 Hz

The overall amplification

not less than 80 dB

Operating temperature range

from minus 40 to plus 50C

Voltage

4 to 6 V

Type of batteries

LR 6

Number of batteries

4 pcs.

Continuous operation time

not less than 240 hours

Dimensions:

Control unit

80mm x 140mm x 40mm

Geophone

H = 70mm, D = 75mm

CERTIFICATS AND WARRANTY

Acoustic locators LKA were certified in Russia in the test laboratory of State University of Oil and Gas named after IM Gubkin. The certificate of conformity GOST R was obtained.

    • GOST 12.2.007.0-75
    • GOST 14254-96

TECHONEFTEGAZ Certificate LKA-00

Acoustic locators LKA are mass-produced according to technical conditions TU 4276-005-96335610-2008. The manufacturer gives for them warranty 12 months.

WORKING TIME AND BATTERIES

  1.5

Conventional alkaline or lithium 1.5V batteries (AA or LR6 type) are the source of power for acoustic locator LKA.

The device has small electric power consumption. And it enables to use the batteries until their complete discharge. The batteries are easy to replace.

With lithium batteries (Energizer, Ultimate Lithium, , 1.5V) the acoustic locator works reliably at low temperatures down to minus 40C.F

Manufacturer: APRODIT Ltd.
140402, Russia, Moscow region, Kolomna, Okskiy prospect 40.
Have a question? Please contact us by phone +7 (916) 674-82-59 (English) or by e-mail support@pigging.tools
