Cuffs and Discs made of Polyurethan

Our company has considerable experience in the design and manufacture of casting molds for the production of polyurethane products.

We produce polyurethane cuffs and discs for a variety of cleaning PIGs. Also we make more sophisticated poliurethane parts for inspection smart PIGs which are reinforced by different metallic parts and cables.

HIGH QUALITY OF POLYURETHANE RAW MATERIALS AND STRICT FOLLOWING OF ALL RECOMENDATIONS FOR CASTING AND CURING IS THE KEY FOR QUALITY ASSURANCE OF FINISHED PRODUCTS

For the production of polyurethane parts, we use only high quality raw materials. We follow the requirements of producers of raw materials to comply with time-temperature regimes at all stages of production and aging of polyurethane products.

Proven technology of metallic parts surface treatment allows us to make reinforced cuffs and discs with unique characteristics. When the part is tested up to the failure the rupture occurs not over the contact surface with the metalic part but in the polyurethane volume.

Physical and mechanical characteristics of the finished products of polyurethane (Shore hardness, elongation at break, abrasion resistance) in accordance with the specifications TU 2292-002-96335610-2011 are controlled in the testing laboratory for each batch.

Technical conditions TU 2292-002-96335610-2011. Products made of polyurethane.

As parts of the PIGs made by our company the cuffs and discs from polyurethane have passed multiple tests and went through various pipelines.

Based on our experience and production base, we manufacture cuffs, discs and other polyurethane products in any quantity for pipes and pipelines with diameter from 50 mm to 1420 mm.

We also carry out orders for the manufacturing of standard and customized polyurethane parts of any complexity.

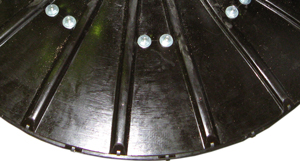

Reinforced polyurethane discs for form-measuring PIG PM-01

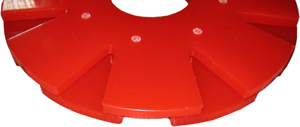

Slotted polyurethane discs for caliper PIG SKT-200-250 used in dual diameter pipelines 8"/10"

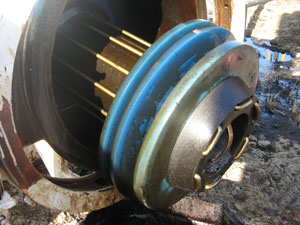

Cleaning PIG USO-530 in receiving chamber of pipeline 20"

Please note that the clearance and delivery to the destination point is at the expense of the Customer. To calculate the cost and duration of the transportation one ought to consult with a logistic company.
